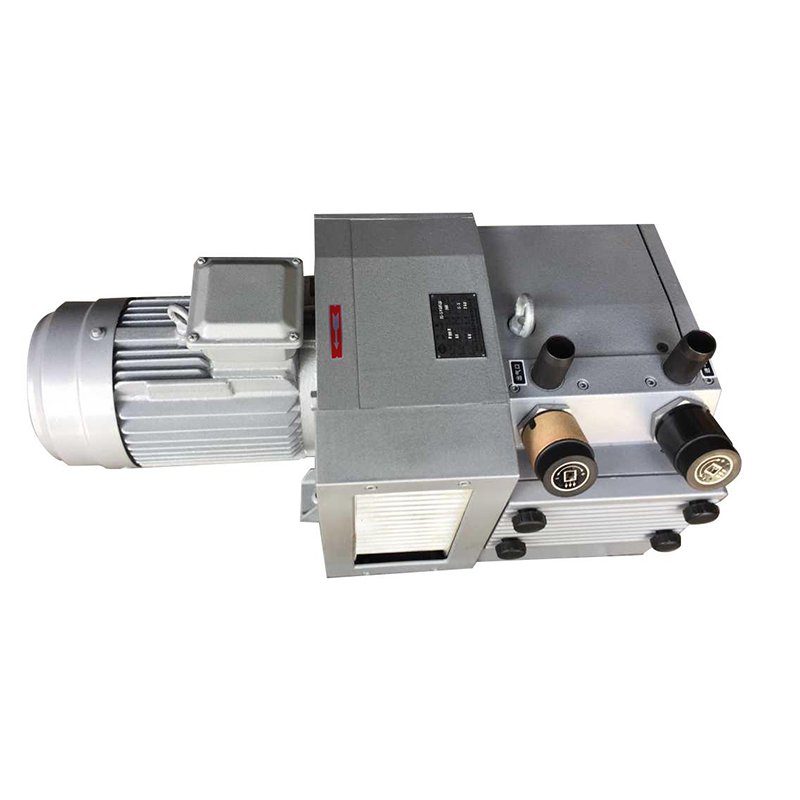

vacuum pumpsZYBW...E type pump manufactured by means of the technology and standard introduced form Germany，has the function of using vacuum to suck air and exhausting the compressed air simultaneously. It also has the features of easy maintenance, clean and oil-less exhaust etc.. This pump is widely used in the industry of printing, packing, cigarette making, dust catching, porcelain, ship’s dirt draining and heat treatment etc..

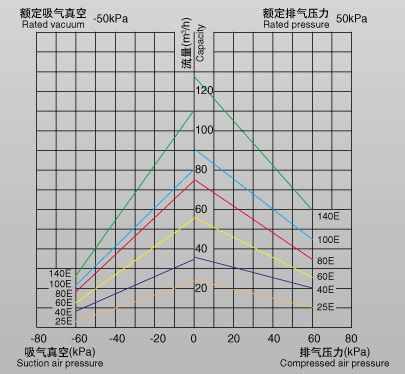

2.IMAGE
| Item | Unit | ZYBW60E | ZYBW80E | ZYBW100E | ZYBW140E |
| Capacity | m3/h | 60 | 80 | 100 | 140 |
| Rated vacuum | kPa | -60 | -60 | -60 | -60 |
| Rated pressure | kPa | 60 | 60 | 60 | 60 |
| Overall dimensions | mm | 755*358*320 | 775*358*320 | 895*480*400 | 935*480*400 |
| Motor rating | KW | 3 | 4 | 5.5 | 7.5 |
| Noise level | dB(A) | 80 | 81 | 82 | 83 |
| Weight | KG | 91 | 99 | 138 | 168 |
| Inlet/Outlet port thread | G | M27*2 | M27*2 | G1*1/4 | G1*1/4 |
5. Gas Pump Decomposition Chart Parts Number and Name
| 序号/No. | Parts Name | 零配件名称 | 序号/No. | Parts Name | 零配件名称 |
| 6 | PUMP BODY | 泵体 | 91 | FILTER CARTRIDGE | 排气过滤器 |
| 8 | ROTOR | 转子 | 93 | STUD | 螺杆 |
| 11 | CARBON VANES(KIT) | 滑片 | 94 | HEX NUT | 螺母 |
| 13 | LID | 左端盖 | 95 | WASHER | 垫片 |
| 14 | LID | 右端盖 | 97 | WASHER | 垫片 |
| 18 | BEARING COVER | 轴承盖 | 98 | SOCKET HEAD SCREW | 螺钉 |
| 19 | BEARING COVER | 轴承盖 | 103 | COVER | 压力气室盖（下） |
| 20 | GASKET | 轴承垫 | 104 | GASKET | 压力气室盖垫 |
| 24 | SEAL | 密封线 | 105 | SOCKET HEAD SCREW | 螺钉 |
| 26 | COMPENSATING DISC | 调整片（选用） | 110 | HANDLE | 旋钮 |
| 27 | SHAFT-SEALING RING | 密封圈 | 121 | COOLER | 冷却管 |
| 28 | BALL BEARING | 左轴承 | 125 | GASKET | 石棉垫 |
| 29 | BALL BEARING | 右轴承 | 126 | GASKET | 石棉垫 |
| 31 | SET DISTANCE DISC | 调整片（选用） | 127 | GASKET | 石棉垫 |
| 37 | HEX HEAD SCREW | 螺钉 | 129 | SOCKET HEAD SCREW | 螺钉 |
| 38 | CLAMPING DISC | 垫片 | 130 | SOCKET HEAD SCREW | 螺钉 |
| 39 | SCREW | 螺钉 | 132 | STUD | 螺杆 |
| 41 | HEX HEAD SCREW | 螺钉 | 134 | COVER | 泵体顶部接头 |
| 42 | HEX HEAD SCREW | 螺钉 | 141 | CONNECTING PIECE | 气室接头 |
| 45 | STRAIGHT PIN | 定位销 | 146 | GASKET | 石棉垫 |
| 47 | KEY | 键 | 148 | SOCKET HEAD SCREW | 螺钉 |
| 50 | CONNECTION FLANGE | 风扇罩壳 | 149 | RUBBER BUFFER | 橡胶圈 |
| 52 | WASHER | 垫片 | 161 | COVERING HOOD | 冷却管罩 |
| 53 | SOCKET HEAD SCREW | 螺钉 | 163 | AIR GUIDE HOOD | 后盖 |
| 57 | WASHER | 垫片 | 165 | VENTILATOR HOOD | 风罩盖 |
| 58 | SHAFT END BOLD | 螺钉 | 166 | VENTILATOR HOOD | 散热管罩 |
| 61 | FILTER HOUSING | 气室 | 170 | SOCKET HEAD SCREW | 螺钉 |
| 62 | GASKET | 垫片 | 171 | SOCKET HEAD SCREW | 螺钉 |
| 64 | STUD | 螺杆 | 173 | SCREW | 螺钉 |
| 65 | STUD | 螺杆 | 175 | RUBBER BUFFER | 橡胶底脚 |
| 67 | SILENCER TUBE | 消声管 | 176 | THREADED PIN | 螺杆 |
| 68 | FILTER CARTRIDGE | 吸气过滤器 | 178 | RING UNIT | 吊环 |
| 69 | FILTER CARTRIDGE | 吸气过滤器 | 182 | FLANGES | 电机联接架 |
| 71 | LEAF SPRING | 弹簧片 | 184 | RUBBER BUSHING | 橡胶底脚 |
| 72 | BLIND RIVET | 螺钉 | 185 | PIPE RIVET | 螺钉 |
| 73 | FILTER-COVER | 真空气室盖 | 186 | WASHER | 垫片 |
| 75 | GASKET | 真空气室盖垫 | 188 | SOCKET HEAD SCREW | 螺钉 |
| 76 | GASKET | 垫片 | 190 | STUD | 螺杆 |
| 77 | FILTER HOLDER | 过滤器座 | 191 | WASHER | 垫片 |
| 79 | SOCKET HEAD SCREW | 螺钉 | 192 | HEX NUT | 螺母 |
| 80 | STUD | 螺杆 | 195 | COUPLING(MOT) | 电机联轴节 |
| 81 | WASHER | 垫片 | 196 | COUPLING DISC | 联轴节缓冲圈 |
| 82 | HEX NUT | 螺母 | 197 | COUPLING WITH FAN | 转子联轴节+风扇 |
| 83 | LOCATING PEG | 定位销钉 | 281 | VACUUM REGULATING VALVE | 真空调节阀 |
| 85 | GASKET | 垫片 | 285 | PRESSURE REGULATING VALVE | 压力调节阀 |
| 86 | GASKET | 垫片 | 288 | SEALING RING | 密封垫 |
| 88 | COOLER | 散热管 |
