1. Description

ZYBW. .. .. The F-type pump is ZYBW. .. .. The replacement product of the B-type gas pump has a significant reduction in noise and temperature rise. The three-use pump can use both inhalation, replenishment and exhaust under the conditions of inhalation vacuum ≥ -60 kPa, air vacuum ≥ -20 kPa, and exhaust pressure ≤ 60 kPa.;

Dual-use pumps can use both inhalation and exhaust(without intermediate filling pipes and regulating valves) under ± 60 kPa pressure, so they are widely used in pneumatic conveying machinery such as printing, packaging, printing iron, cigarettes, electronics, ceramics, dust removal, lamps, and grain processing. Industry.

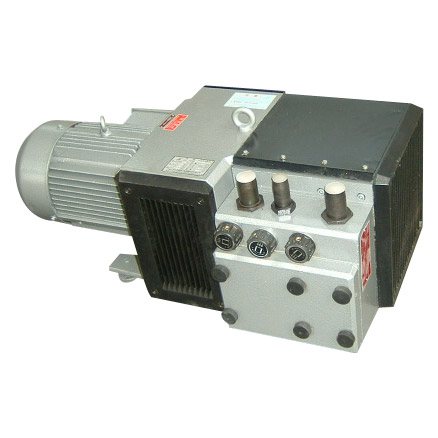

2. Pictures

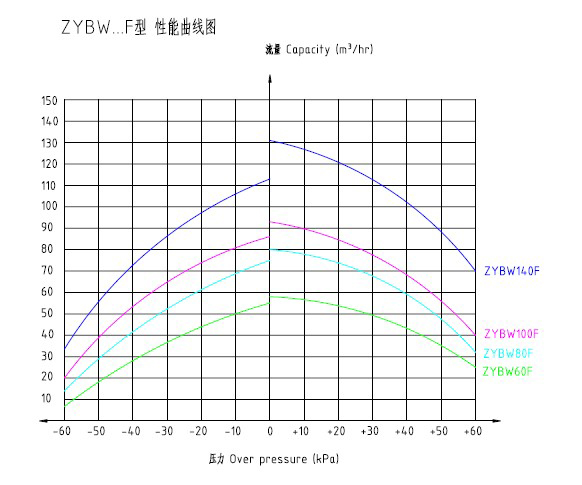

3. Performance curve

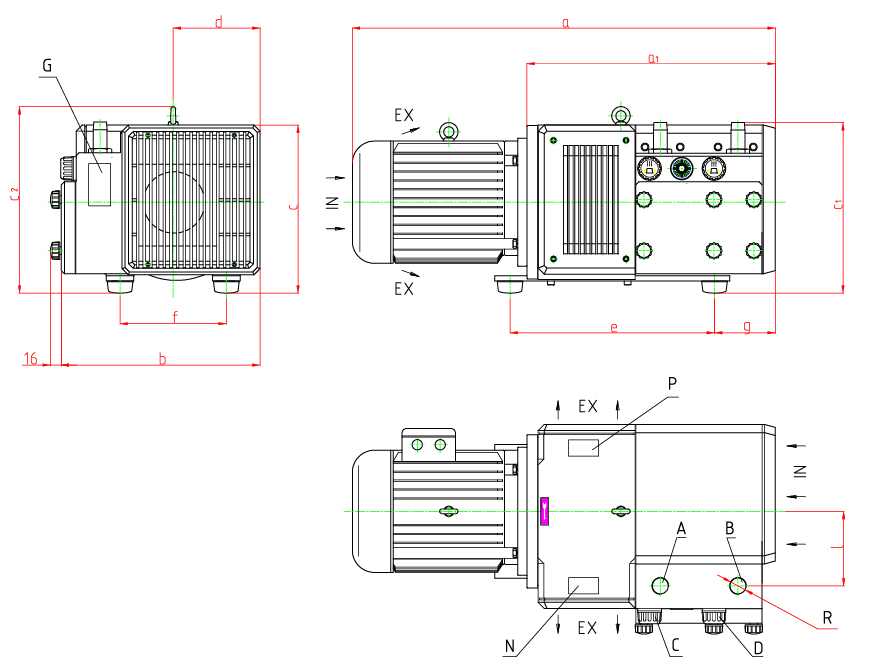

4. Shape dimensions

5. Technical Specifications and Parameters

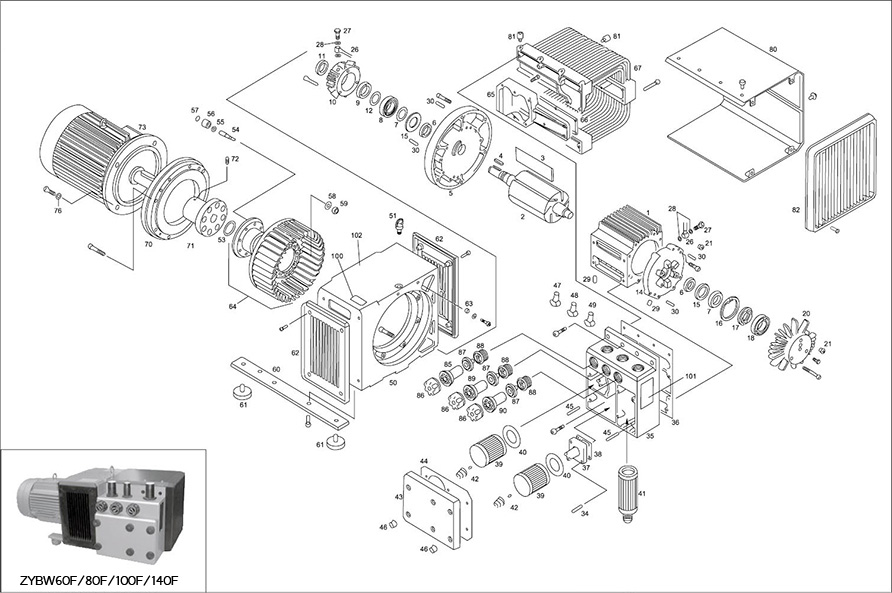

6. Gas Pump Decomposition Char

7. Gas Pump Decomposition Chart Parts Number and Name
