VFT... V vacuum pumps

VFT DRY RUNNING VACUUM PUMP

VFT

1.Introduce

VFT DRY RUNNING VACUUM PUMP

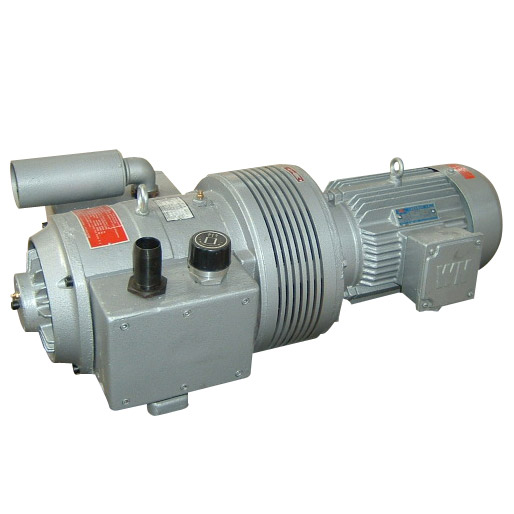

VFT type of dry running vacuum pump, manufactured by means of the technology and standard introduced form Germeny, has features of good charactor, low noise, low temperature-rising and long duration etc... This pump is widely used in the industry of carving machine，blister machine, glass-tube drawing-out equipment，pneumatic grain elevator ，printing and packing etc...

2.Picture

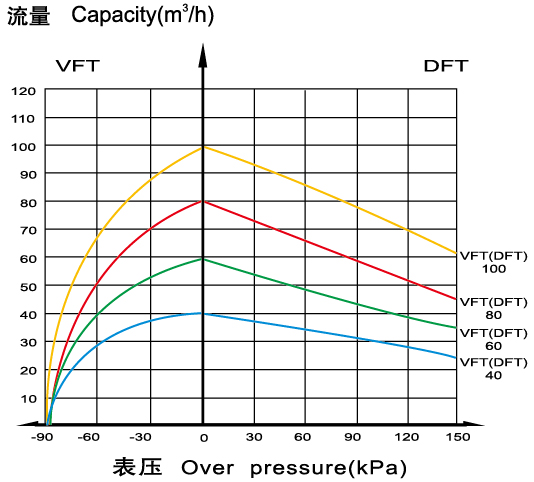

3.Performance curve

4.Specifications

Item/Type		VFT40	VFT60	VFT80	VFT100
	Unit
Capacity	m3/h	40	60	80	100
Rated Vacuum	kPa	-85	-85	-85	-85
Motor Rating	kW	1.5	2.2	3	4
Motor Speed	r/min	1420	1420	1420	1420
Noise level	dB(A)	75	77	78	80
Dia.of connecting pipe	mm	27	33	33	42
Net Weight	kg	62	80	90	115
Gross Weight	kg	85	105	120	145
Pump Size	mm	689x333x267	761x383x307	762x432x372	828x438x372
Package Size	mm	840x465x450	930x530x500	910x580x540	950x480x540

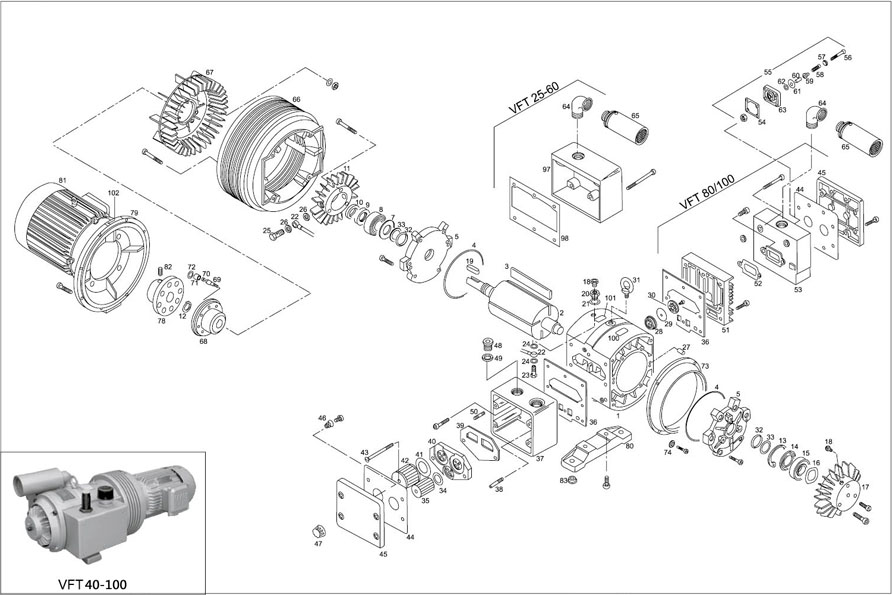

5.exploded

6.part and name

序号/No.	Parts nmae	零件名称	序号/No.	Parts nmae	零件名称
1	Cylinder	泵体	44	Gasket	垫
2	Rotor	转子	45	Filter cover	吸气室盖
3	Blade	滑片	46	Con spring	压簧
4	O-ring (DFT 80/100)	O型密封圈	47	Knob	旋钮
5	End cover	端盖	48	Plug	螺塞
7	Cover'A	调整垫	49	Seal ring	垫圈
8	Roller bearing	轴承	50	Threated pin	双头螺柱
9	Nut	园螺母	51	Frame	连接室
10	INA-seal ring	密封圈	52	Gasket	垫
11	Bearing cover'A	轴承盖	53	Exhaust box	排气室
12	Security ring	卡簧	54	Gasket	垫
13	Security ring	卡簧	55	Value	阀部件
14	Cover'B	轴承挡圈	56	Screw	螺钉
15	Roller bearing	轴承	57	Spring base	弹簧座
16	Tolerance shim	波形弹性圈	58	Spring	弹簧
17	Bearing cover'B	轴承盖	59	Value body	阀体
18	Grease nipple	油杯	60	Pipe	管
19	Key	键	61	Value disk	阀片
20	Plug	管接头	62	Nut	螺母
21	Disk	垫	63	Value plate	阀盘
22	Pipe	胶接接头	64	Bow	弯头
23	Hollow screw	胶接螺栓	65	Silencer Complete	消声器部件
24	Seal ring	垫圈	66	Fan cover	风扇罩壳
25	Hollow screw	胶接螺栓	67	Fan cover	风扇
26	Seal ring	垫圈	68	Coupling driven	转子联轴节
27	Dowel pin	定位销	69	Coupling bolt	柱销
28	Coil	阀体	70	Dustance ring	隔环
29	Valve disk	阀片	71	Coupling rubber	弹性圈
30	Valve plate	阀盖	72	Security ring	卡簧
31	Eye bolt	吊环螺钉	73	End cover	进风罩
32	Seal ring	密封圈	74	Disc	垫
33	Support ring	压环	78	Coupling driven	电机联轴节
34	Seal ring	垫圈	79	Motor flange	电机联接架
35	Filter cartridge	滤芯	80	Foot	支座
36	Gasket	垫	81	Motor	电机
37	Filter housing	吸气室	82	Threated pin	紧定螺钉
38	Shaft screw	螺柱	83	Rubber foot	底脚
39	Gasket	垫	97	Exhaust box	排气室
40	Filter base	滤芯座	98	Gasket	垫
41	Seal ring	垫圈	100	Greasing lable	润滑标牌
42	Filter cartridge	滤芯	101	Date plate	铭牌
43	Screw	螺钉	102	Rottation arrow	转向标牌
