Index>>Product>>Dry running>>combined pumps

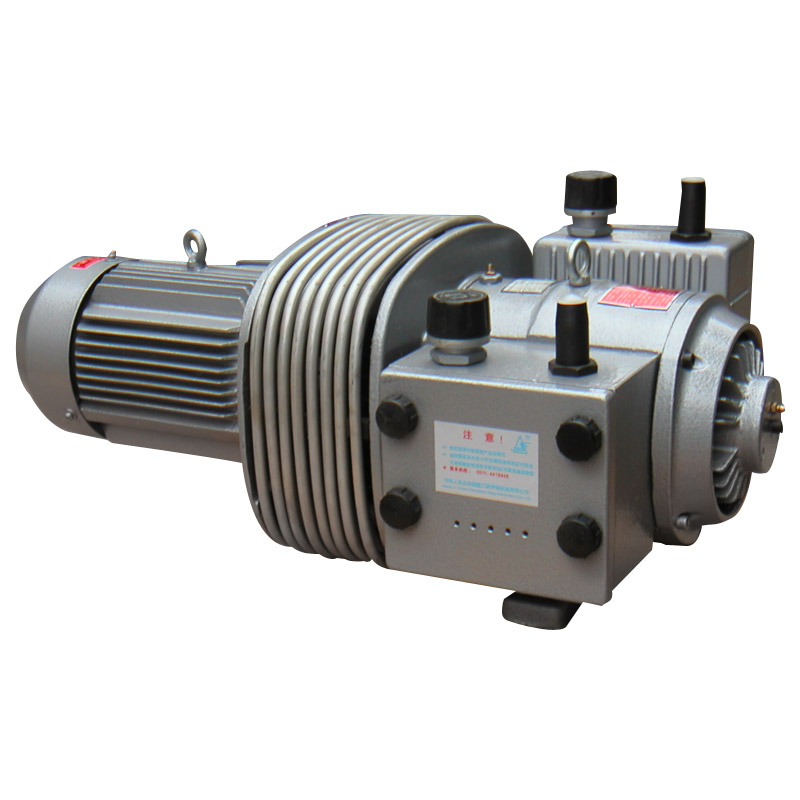

combined pumpsCLFT...DV,ZYBW...B DRY RUNNING VACUUM AND PRESSURE COMBINED PUMP
CLFT...DV,ZYBW...B type of dry running vacuum and pressure combined pump is specially used in paper feeder of printing and packing equipment. The pump is also used in the industry of stamping on iron sheet, cigarette making, dust filter,porcelain,lamp and lantern manufacturing, grain processing etc...
| Item/Type | ZYBW100B | ZYBW140B | ZYBW160B | |
| Unit | ||||
| Capacity | m3/h | 100 | 140 | 160 |
| Rated Vacuum | kPa | -60 | -60 | -60 |
| Rated Pressure | kPa | 60 | 60 | 60 |
| Motor Rating | kW | 5.5 | 5.5 | 7.5 |
| Motor Speed | r/min | 1420 | 1420 | 1420 |
| Noise level | dB(A) | 82 | 84 | 85 |
| Dia.of connecting pipe | mm | 42 | 42 | 42 |
| Net Weight | kg | 162 | 164 | 168 |
| Gross Weight | kg | 175 | 180 | 185 |
| Pump Size | mm | 920x487x372 | 920x487x372 | 950x487x372 |
| Package Size | mm | 1020x620x570 | 1020x620x570 | 1060x620x570 |

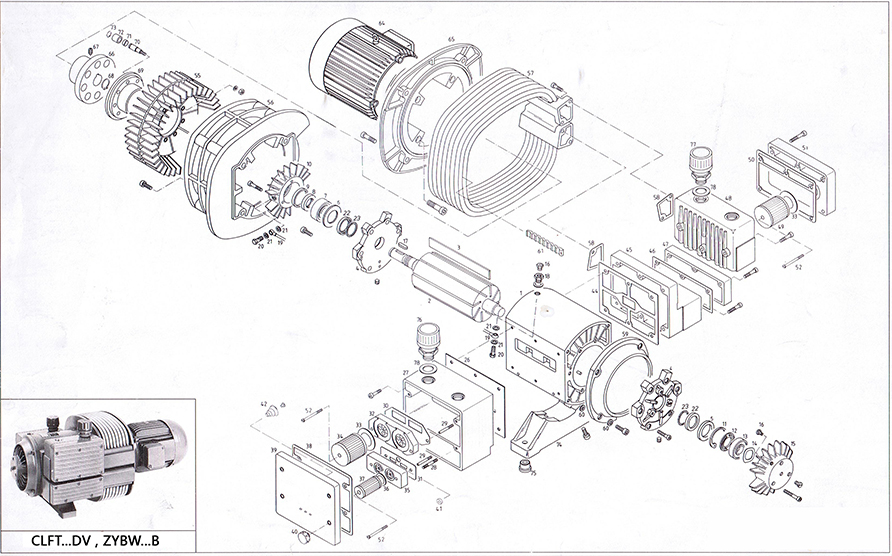

| 序号 | Parts Name | 零件名称 | 序号 | Parts Name | 零件名称 |
| 1 | Cylinder | 泵体 | 39 | Filter cover | 气包盖 |
| 2 | Rotor | 转子 | 40 | Knob | 旋钮 |
| 3 | Blade | 滑片 | 41 | Seal ring | 垫片 |
| 4 | End cover | 端盖 | 42 | Spring | 宝塔簧 |
| 5 | Ring | 轴承调整垫 | 44 | Gasket | 垫片 |
| 6 | Cover | 盖 | 45 | Frame | 补气气包 |
| 7 | Roller bearing | 轴承 | 46 | Gasket | 垫片 |
| 8 | Nut | 圆螺母 | 47 | Cover | 补气气包盖 |
| 9 | Seal ring | 密封圈 | 48 | Exhaust box | 压力气包 |
| 10 | Bearing cover | 轴承盖 | 49 | Cartridge | 滤芯 |
| 11 | Security ring | 卡簧 | 50 | Gasket | 垫片 |
| 12 | Cover | 轴承挡圈 | 51 | Exhaust box cover | 压力气包盖 |
| 13 | Roller bearing | 轴承 | 52 | Screw | 螺钉 |
| 14 | Tolerance shim | 波形簧 | 52 | Screwl | 螺钉 |
| 15 | Bearing cover | 轴承盖 | 55 | Fan | 风扇 |
| 16 | Grease nipple | 加油嘴 | 56 | Fan cover | 风扇罩壳 |
| 17 | Key | 键 | 57 | After vooler | 冷却管 |
| 18 | Plug | 螺丝 | 58 | Gasket | 垫片 |
| 19 | Pipe | 油管 | 59 | End cover | 端盖 |
| 20 | Hollow screw | 油管螺丝 | 60 | Disc | 弹簧垫片 |
| 21 | Seal ring | 紫铜垫片 | 61 | Pipe clamp | 隔垫 |
| 22 | Adapter ring | 调整垫 | 64 | Motor | 电机 |
| 23 | Gasket | 垫片 | 65 | Motorflange | 电机架 |
| 26 | Gasket | 垫片 | 66 | Coupling | 电机联轴节 |
| 27 | Filter housing | 真空气包 | 67 | Threaded pin | 锁紧螺丝 |
| 28 | Threaded pin | 双头螺杆 | 68 | Circlip | 卡簧 |
| 29 | Shaft screw | 螺杆 | 69 | Coupling | 转子联轴节 |
| 30 | Gasket | 垫片 | 70 | Bolt | 柱销 |
| 31 | Gasket | 垫片 | 71 | Distance ring | 垫片 |
| 32 | Filter base | 过滤器座 | 72 | Coupling rubber | 弹性圈 |
| 33 | Gasket | 过滤器座垫 | 73 | Circlip | 卡簧 |
| 33 | Gasket | 垫片 | 74 | Foot | 底座 |
| 34 | Cartridge | 滤芯 | 75 | Rubber foot | 橡胶地脚 |
| 35 | Filter base | 过滤器座垫 | 76 | Vacuum regulating valve | 真空调节阀 |
| 36 | Gasket | 垫片 | 77 | Pressure regulation value | 压力调节阀 |
| 37 | Cartridge | 滤芯 | 78 | Seal ring | 垫片 |
| 38 | Gasket | 气包盖垫 | Type | CLFT101DV， ZYBW...B | |
