Index>>Product>>Dry running>>combined pumps

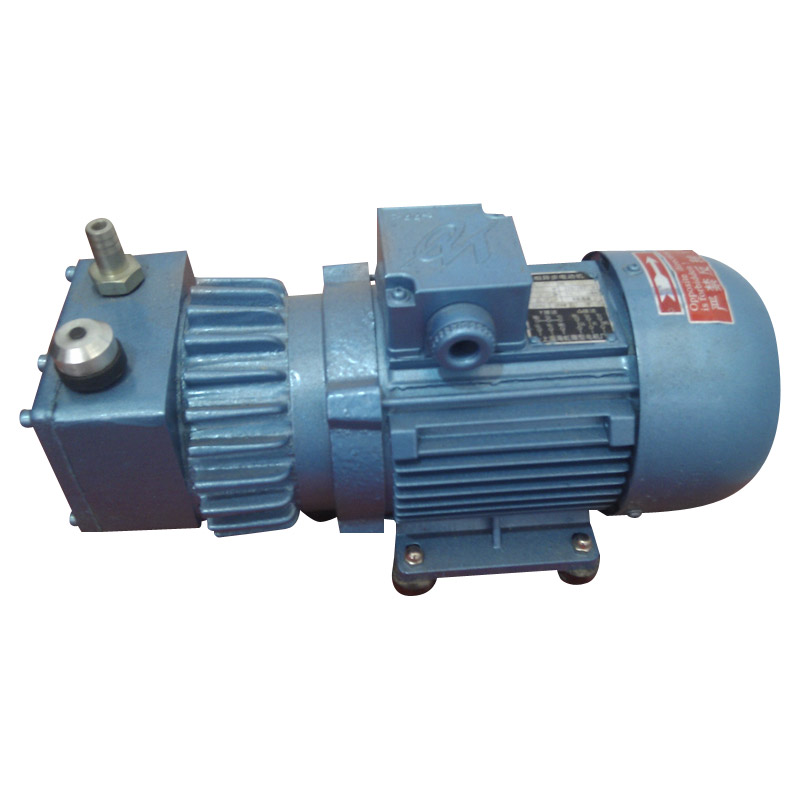

combined pumpsTPL...DV DRY RUNNING VACUUM AND PRESSURE COMBINED PUMP
TPL...D DRY RUNNING PRESSURE PUMP
TPL...D type of dry running vacuum and pressure combined pump is specially used in paper feeder of printing and packing equipment. The pump is also used in the industry of stamping on iron sheet, cigarette making, dust filter,porcelain,lamp and lantern manufacturing, grain processing etc...
项目Item |
| 6DV | 6V | 6D | 8DV | 8V | 8D | 16DV | 16V | 16D | 25DV | 40DV |
流量Capacity(m3/h) |
| 6 | 8 | 16 | 25 | 40 | ||||||
额定真空Rated Pressure(kPa) |
| -40 | -90 |
| -40 | -90 |
| -40 | -90 |
| -50 | -50 |
额定压力Rated Pressure(kPa) |
| 40 |
| 100 | 40 |
| 100 | 40 |
| 100 | 50 | 50 |
转速Motor speed(r/min) |
| 1400 | ||||||||||
电机功率Motor rating(r/min) |
| 0.25 | 0.55 | 1.1 | 1.5 | |||||||
噪声Noise level | DB(A) | 68 | 70 | 68 | 68 | 70 | 68 | 73 | 73 | 73 | 78 | 78 |
泵体温升Temperature-rise | ℃ | 60 | 70 |
| 60 | 70 |
| 75 | 73 |
| 80 | 80 |
吸排气风管外径Dia.of connecting pipe(mm) | 13 | 18 | 18 | |||||||||
重量(Weight) | 15 | 20 | 50 | |||||||||
外形尺寸(A×B×H)Overall dimensions(mm) | 355×160×190 | 400×180×220 | 550×300×340 | |||||||||
