ZYBW...F combined pumps

ZYBW...F DRY RUNNING VACUUM AND PRESSURE COMBINED PUMP

ZYBW...F

1.Introduce

ZYBW...F DRY RUNNING VACUUM AND PRESSURE COMBINED PUMP

ZYBW...F type of dry running vacuum and pressure combined pump is specially used in paper feeder of printing and packing equipment. It is two types, ZYBW...F(2) is with one vacuum value and one pressure value; ZYBW...F(3) is with two vacuum values and one pressure value. The pump is also used in the industry of stamping on iron sheet, cigarette making, dust filter,porcelain,lamp and lantern manufacturing, grain processing etc...

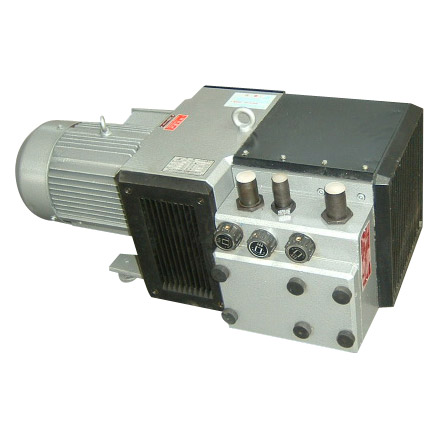

2.Picture

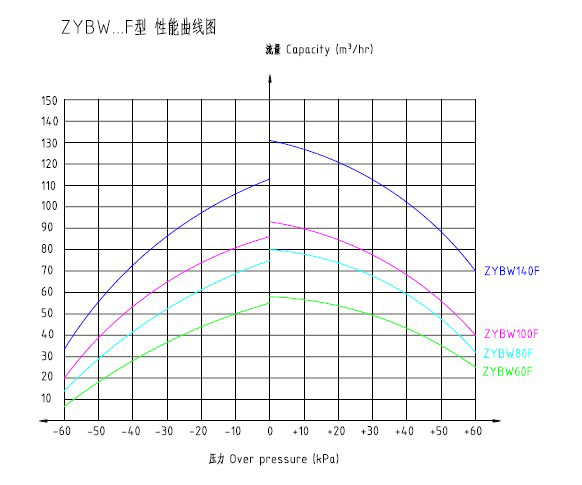

3.Performance curve

4.Performance curve

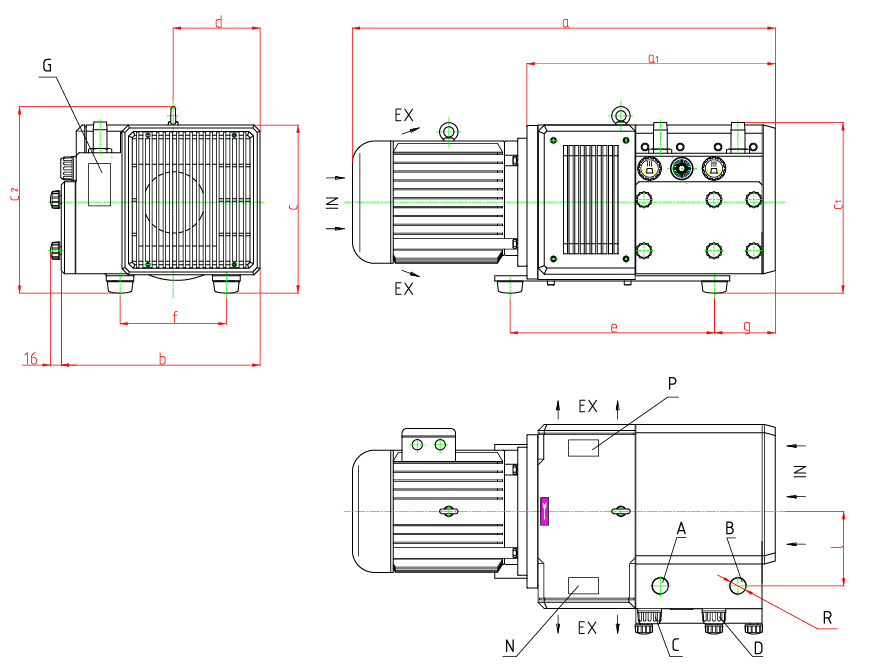

5.Specifications

Item/Type		ZYBW60F	ZYBW80F	ZYBW100F	ZYBW140F
	Unit
Capacity	m3/h	60	80	100	140
Rated Vacuum	kPa	-60	-60	-60	-60
Supplement Vacuum	kPa	-20	-30	-30	-30
Rated Pressure	kPa	60	60	60	60
Motor Rating	kW	3	4	5.5	7.5
Motor Speed	r/min	1420	1420	1420	1420
Noise level	dB(A)	76	77	79	82
Dia.of connecting pipe	mm	27/20/27	33/27/33	34	24.1/38.9/44.8
Net Weight	kg	85	95	120	145
Gross Weight	kg	120	125	175	180
Pump Size	mm	788x405x350	808x405x350	965x405x350	1031x405x350
Package Size	mm	930x560x540	940x560x540	1250x550x570	1300x550x570

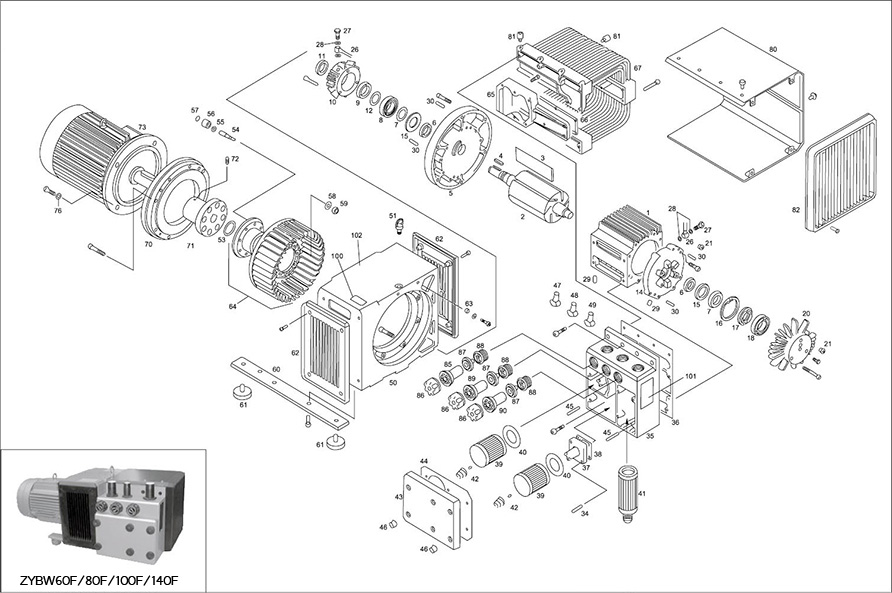

6.exploded

7.Parts' list of ZYBW...F

序号/ No.	Part's Name	零件名称	序号/ No.	Part's Name	零件名称
1	Housing	泵体	47	Disc	吸气管接头
2	Rotor	转子	48	Spring	补气管接头
3	Blade	滑片	49	Cap nut	排气管接头
4	Key	键	50	Fan housing	风扇罩壳
5	Housing cover'A	左端盖	51	Lifting eye	吊环螺钉
6	Shaft Seal	密封圈	53	Lock ring	孔用卡簧
7	Cover ring'A	隔环	54	Coupling bolt	柱销
8	Angular ball bearing	轴承	55	Spacer ring	隔环
9	Shaft Seal	密封圈	56	Coupling rubber	弹性圈
10	Bearing cover'A	轴承盖A	57	Lock ring	轴用卡簧
11	Clamping nut	圆螺母	58	Disc	垫圈
12	Lock ring	轴用卡簧	59	Hexhead screw,self-locking	螺母
14	Housing cover'B	右端盖	60	Foot plate	底板
15	Ring	压环	61	Rubber foot	橡胶底脚
16	Lock ring	孔用卡簧	62	Cover grid	风罩盖
17	Cover ring'B	轴承挡圈	63	Coupling rubber	弹性圈
18	Cylinder roller bearing	轴承	64	Fan/coupling cpl.	风扇及转子联轴节
20	Bearing cover'B	右轴承座	65	intermediate box	过度板
21	Grease nipple	油杯	66	Gasket	过度板垫
26	Pipe line	铰接接头	67	Cooling segment	冷却管部件
27	Banjo bolt	铰接螺栓	70	Motor flange	法兰
28	Sealing ring	垫圈	71	Coupling half driving	电机联轴节
29	Threaded pin	平端锁紧螺钉	72	Threaded pin	锁定螺钉
33	Space ring	调整垫	73	Motor	电机
34	Threaded pin	圆头螺柱	76	Disc	螺钉垫片
35	Filter housing	气室	80	Cover cap	外罩
36	Gasket	气室垫	81	Pin	螺钉
37	Filter socket	过滤器座	82	Suction grid	后进风罩
38	Gasket	过滤器座垫	85	Built-in cartridge	吸气调节阀部件
39	Filter cartridge	吸气过滤器	86	Valve knob	调节阀阀盖
40	Sealing ring	吸气过滤器垫	87	Valve plate	气门
41	Filter cartridge with spring	排气过滤器	88	Valve body	气门芯
42	Spring	压簧	89	Built-in cartridge	补气调节阀部件
43	Filter housing cover	气包盖	90	Built-in cartridge	排气调节阀部件
44	Gasket	气包盖垫	100	Data plate	产品标牌
45	Threaded pin	双头螺柱	101	Greasing lable	润滑标牌
46	Filter knob	旋钮	102	Direction arrow	转向标牌
