Index>>Product>>Dry running>>vacuum pumps
vacuum pumps1. Description
TPL. .. .. DV compound pump can use both inhalation and exhaust under ± 40 kPa conditions

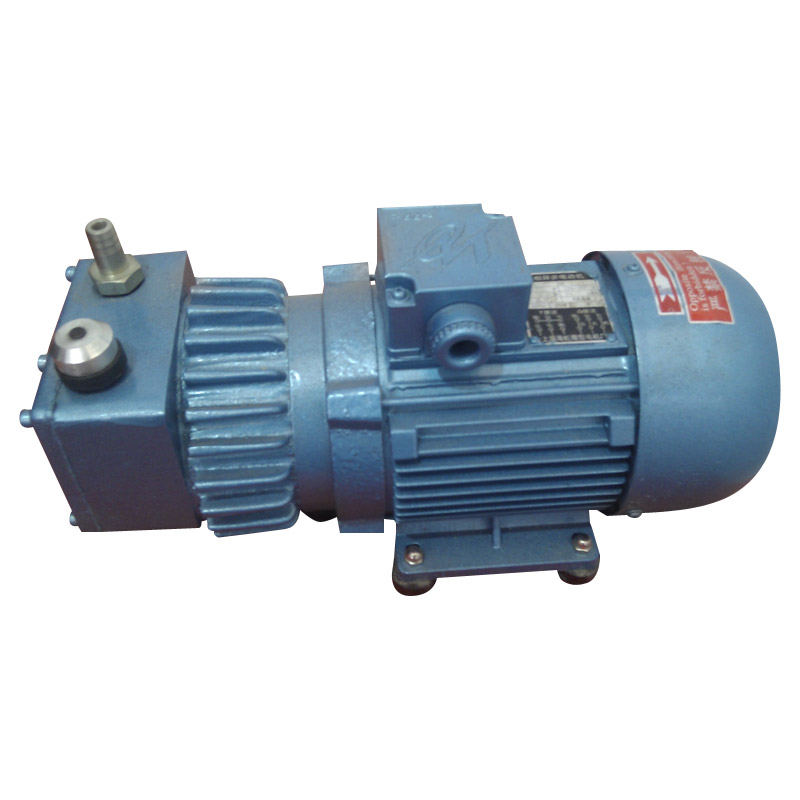

2. Pictures
项目Item |
| 6DV | 6V | 6D | 8DV | 8V | 8D | 16DV | 16V | 16D | 25DV | 40DV |
流量Capacity(m3/h) |
| 6 | 8 | 16 | 25 | 40 | ||||||
额定真空Rated Pressure(kPa) |
| -40 | -90 |
| -40 | -90 |
| -40 | -90 |
| -50 | -50 |
额定压力Rated Pressure(kPa) |
| 40 |
| 100 | 40 |
| 100 | 40 |
| 100 | 50 | 50 |
转速Motor speed(r/min) |
| 1400 | ||||||||||
电机功率Motor rating(r/min) |
| 0.25 | 0.55 | 1.1 | 1.5 | |||||||
噪声Noise level | DB(A) | 68 | 70 | 68 | 68 | 70 | 68 | 73 | 73 | 73 | 78 | 78 |
泵体温升Temperature-rise | ℃ | 60 | 70 |
| 60 | 70 |
| 75 | 73 |
| 80 | 80 |
吸排气风管外径Dia.of connecting pipe(mm) | 13 | 18 | 18 | |||||||||
重量(Weight) | 15 | 20 | 50 | |||||||||
外形尺寸(A×B×H)Overall dimensions(mm) | 355×160×190 | 400×180×220 | 550×300×340 | |||||||||
