ZYB...A combined pumps

ZYB...A combined pumps

ZYB...A OIL-LUBRICANT VACUUM / PRESSURE PUMP

1.Introduce

ZYB...A OIL-LUBRICANT VACUUM / PRESSURE PUMP

ZYB...A type of oil lubricant vacuum and pressure combined pump is specially used in paper feeder of printing and packing equipment. The pump is also used in the industry of stamping on iron sheet, cigarette making, dust filter,porcelain,lamp and lantern manufacturing, grain processing etc...

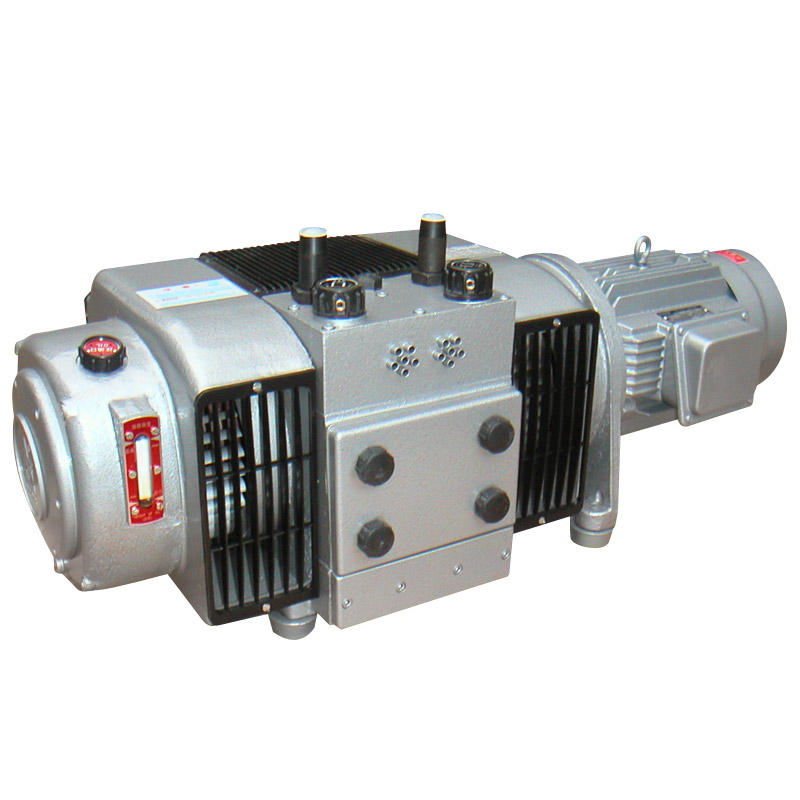

2.Picture

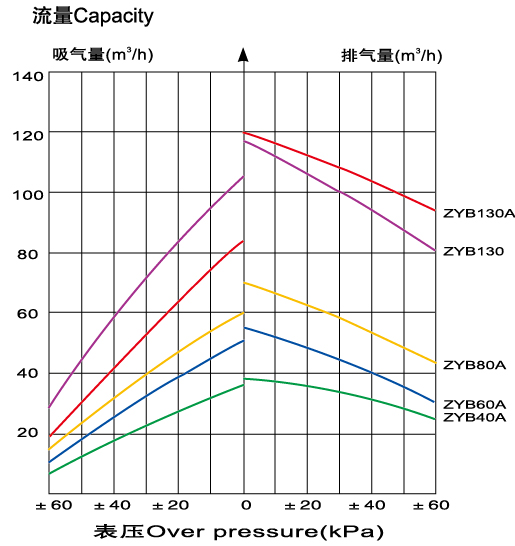

3.Performance curve

4.Specifications

Item/Type   ZYB40A ZYB60A ZYB80A ZYB130A ZYB130
  Unit
Capacity m3/h 60 60 80 130 130
Rated Vacuum  kPa -60 -60 -60 -60 -60
Supplement Vacuum  kPa   -20 -20 -30
Rated Pressure kPa 60 60 60 60 60
Motor Rating kW 1.5 2.2 3 5.5 5.5
Motor Speed r/min 1420 1420 1420 1420 1420
Noise level dB(A) 77 78 80 82 82
Dia.of connecting pipe mm 27 27 34 27/42/48 42
Net Weight kg 95 115 125 180 180
Gross Weight kg 115 135 150 210 210
Pump Size mm 721x313x280 788x405x350 808x405x350 965x405x350 1031x405x350
Package Size mm 850x465x470 930x560x540 940x560x540 1250x550x570 1300x550x570

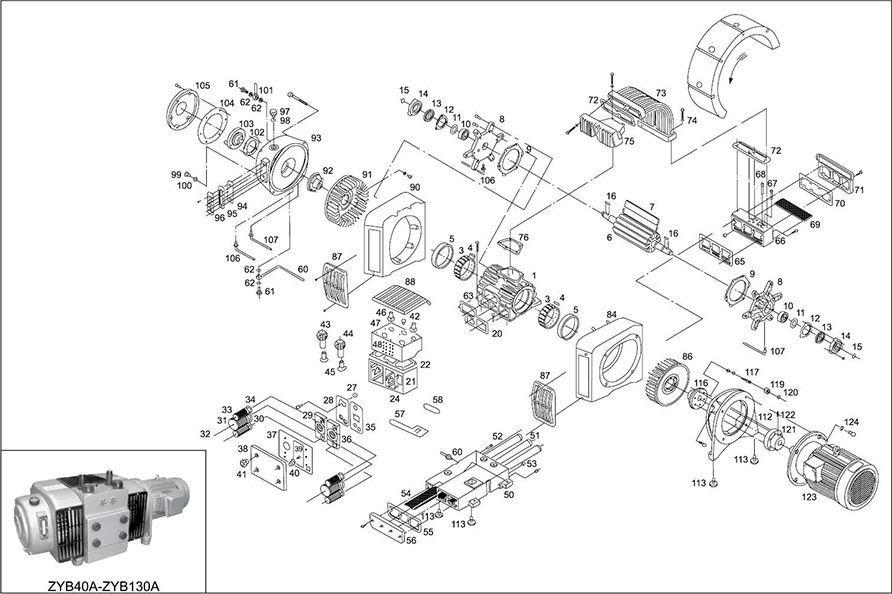

5.exploded


6.Parts List Of ZYB…A Oil-lubricant Vacuum & Pressure Combined Air Pump

序号 中文名称 English Name 序号 中文名称 English Name 序号 中文名称 English Name
主要部件   Basic Parts 39 螺钉 Screw 冷却部件   Air-cooling
1 泵体 Cylinder 40 压簧 Spring  84 右风扇罩壳 Fan cover
3 卸荷环 Carrierring 41 旋钮 Knob 86 右风扇 Fan
4 小滑片 Vanes for carrier ring 42 风管接头 Value or suction nozzle 87 风罩盖 Protection grill
5 端套 Retaining ring 43 真空调节阀部件 Vacuum regulating value 88 上风罩 Cover
6 转子 Rotor 44 排气调节阀部件 Pressure regulating value 90 左风扇罩壳 Fan cover
7 滑片 Blade 45 气门 Regulating value part 91 左风扇 Fan
8 端盖 End cover 46 风管接头 Value 92 油泵联轴节 Fan hub
9 垫片(端盖垫) End cover gasket 47 扁螺母 Nut collar 润滑部件   Lubrication
10 轴承 Roller bearing 48 塑料管 Platic pipe 93 油箱 Oil tank
11 波形弹性垫圈 Spring washer 油分离部件   Oil separator side 94 油标垫 Gasket
12 轴承盖垫 Gasket 50 底座 Oil separator  95 油标体 Gasket
13 油封 Shaft seal  51 二级滤管 Separator pipe 96 油面标牌 Oil sight glass
14 轴承盖 Oil seal housing 52 螺钉 Screw 97 注油盖 Oil filler plug
15 挡圈(卡簧) Clrclip 53 回油套 Nozzle 98 注油盖垫 Gasket
16 Key 54 二级滤网 Oil separator mesh 99 放油螺塞 Oil darin plug
气包部件   Filter Side 55 前盖垫 Gasket 100 垫圈 Gasket
20 滤清气包垫 Gasket 56 前盖 Oil separator cover 101 油箱回油管 pipe
21 滤清气包 Filter housing 57 泵体前垫片 Gasket 102 油泵垫 Gasket
22 调节气包垫 Gasket 58 泵体后垫片 Gasket 103 油泵部件 Oil pump
23 螺柱 Threaded pin 60 油管 Oil pipe 104 油箱盖垫 Gasket
24 螺柱 Threaded pin 61 铰接螺栓 Banjo bolt 105 油箱盖 Oil tank cover
25 螺钉 Shaft screw 62 紫铜垫圈 Sealing ring 106 短给油管 Oil pipe
26 调节气包 Adjusting housing 65 底座后垫片 Gasket 107 长给油管 Oil pipe
27 垫圈 Gasket 66 冷却管座 Pre-separator box 传动部件   Drive
28 海绵垫 Gasket 67 短塑料管 Separator pipe 112 支架(电机联接架) Motor flange
29 过滤器座 Filter base 68 长塑料管 Separator pipe 113 底脚 Rubber foot
30 大垫圈 Gasket 69 一级滤网 Oil separator mesh 116 转子联轴节 Coupling
31 大过滤器 Filter  70 后盖垫 Gasket 117 柱销 Coupling bolt
32 螺钉 Shaft screw 71 后盖 Pre-separator mesh 119 弹性圈 Coupling rubber
33 过滤器 Filter 72 接头垫片 Gasket 120 挡圈(卡簧) Coupling washer
34 中垫圈或小垫圈 Gasket 73 冷却管部件 After cooler 121 电机联轴节 Coupling
35 小海绵垫 Gasket 74 螺钉 Nozzle 122 紧定螺钉 Gyub screw
36 小过滤器座 Filter base 75 排气弯头 Manifold 123 电动机 Motor
37 气包盖垫 Gasket 76 泵体上垫片 Gasket 124 螺栓及垫圈 Bolt
38 气包盖 Filter cover
