Index>>Product>>Channel blower

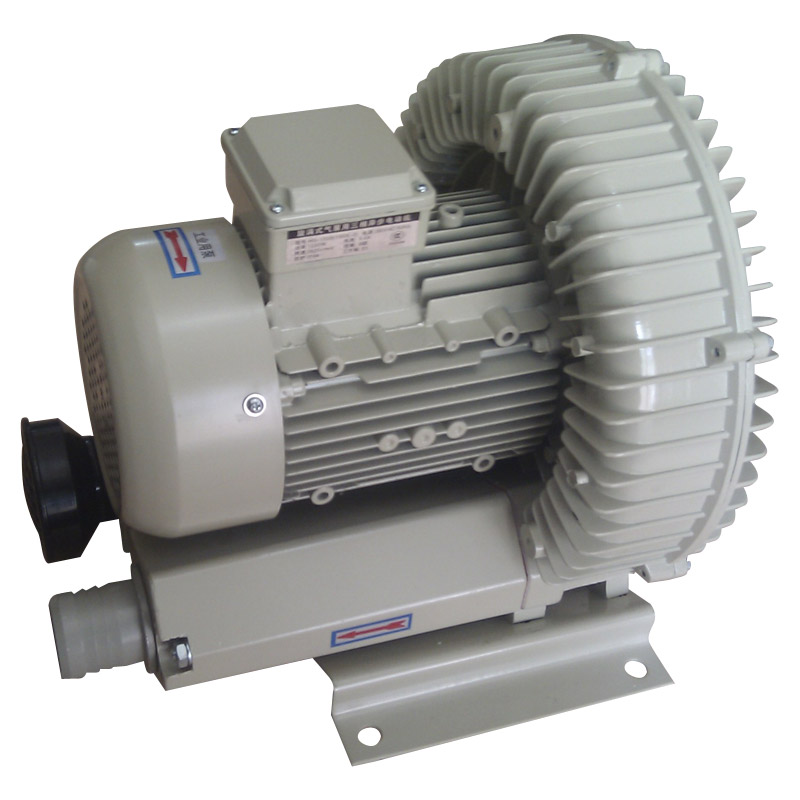

Channel blowerChannel blower, as a gas source equipment for sucking or exhausting operation, has the feactures of small volume, light weight,high flow,low noise and duration etc…
Channel blower, as a gas source equipment for sucking or exhausting operation, has the feactures of small volume, light weight,high flow,low noise and duration etc… This blower is widely used in the industry of printing, textile,dust catching,pneumatic conveying and aquatic products cultivating etc
| Item/Type | Capacity | Rated Vacuum | Rated Pressure | Motor Rating | Net Weight | Pump Size |
| m3/h | kPa | kPa | W | kW | MM | |
| XWB1-17 | 18 | -5 | 7.5 | 90 | 4.7 | 248x198x224 |
| XWB2-16 | 21 | -5 | 7.5 | 120 | 4.7 | 248x198x224 |
| XWB3-11 | 26 | -6.5 | 9 | 180 | 12 | 279x219x243 |
| XWB4-14 | 35 | -10 | 11 | 250 | 9 | 279x240x266 |
| XWB5-1 | 60 | -11 | 12 | 370 | 12 | 279x240x266 |
| XWB6-7 | 95 | -12 | 15 | 550 | 13 | 294x288x315 |
| XWB7-12 | 110 | -14 | 16 | 750 | 14 | 294x288x315 |
| XWB8-2 | 180 | -16 | 22 | 1100 | 20 | 332x328x358 |
| XWB9-4 | 210 | -18 | 22 | 1500 | 28 | 390x360x371 |
| XWB10-3 | 230 | -20 | 28 | 2200 | 32 | 400x385x415 |
| XWB11-8 | 280 | -26 | 35 | 3000 | 38 | 406x384x400 |
| XWB12-9 | 350 | -25.5 | 33 | 4000 | 45 | 413x392x404 |
| XWB13-5 | 380 | -28 | 45 | 5500 | 76 | 486x418x455 |
| XWB14-10 | 400 | -30 | 42 | 7500 | 80 | 498x460x495 |
